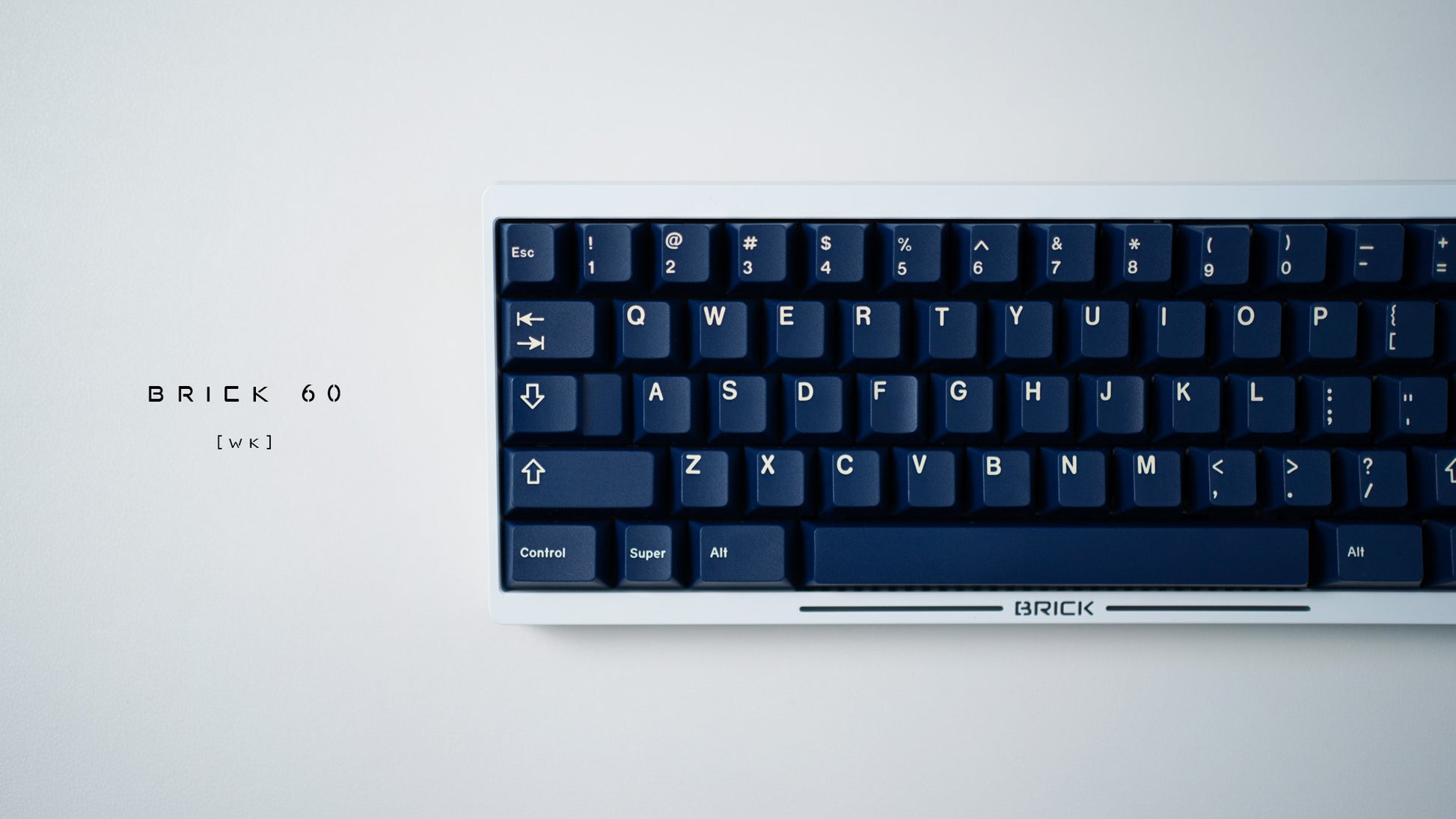

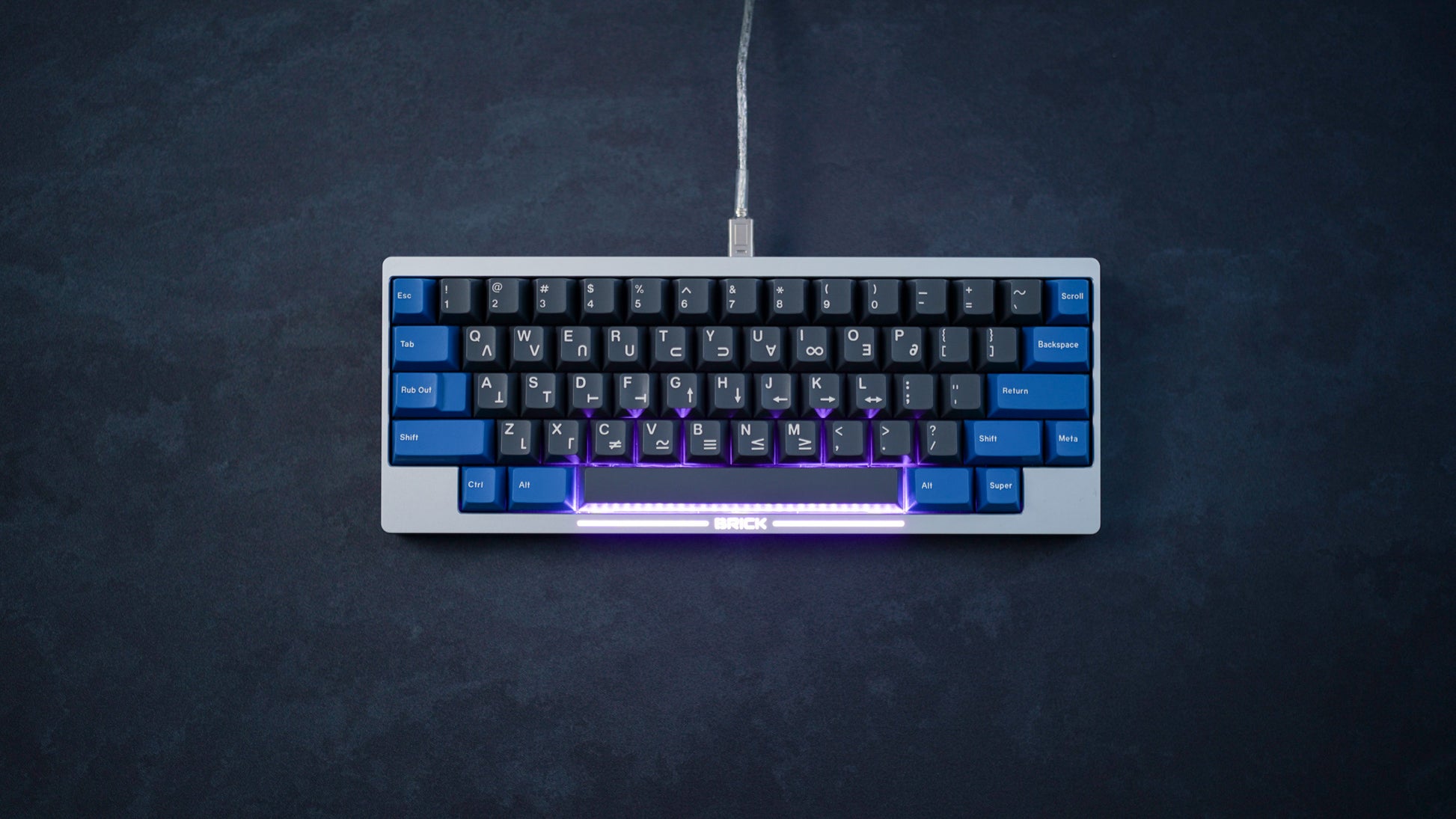

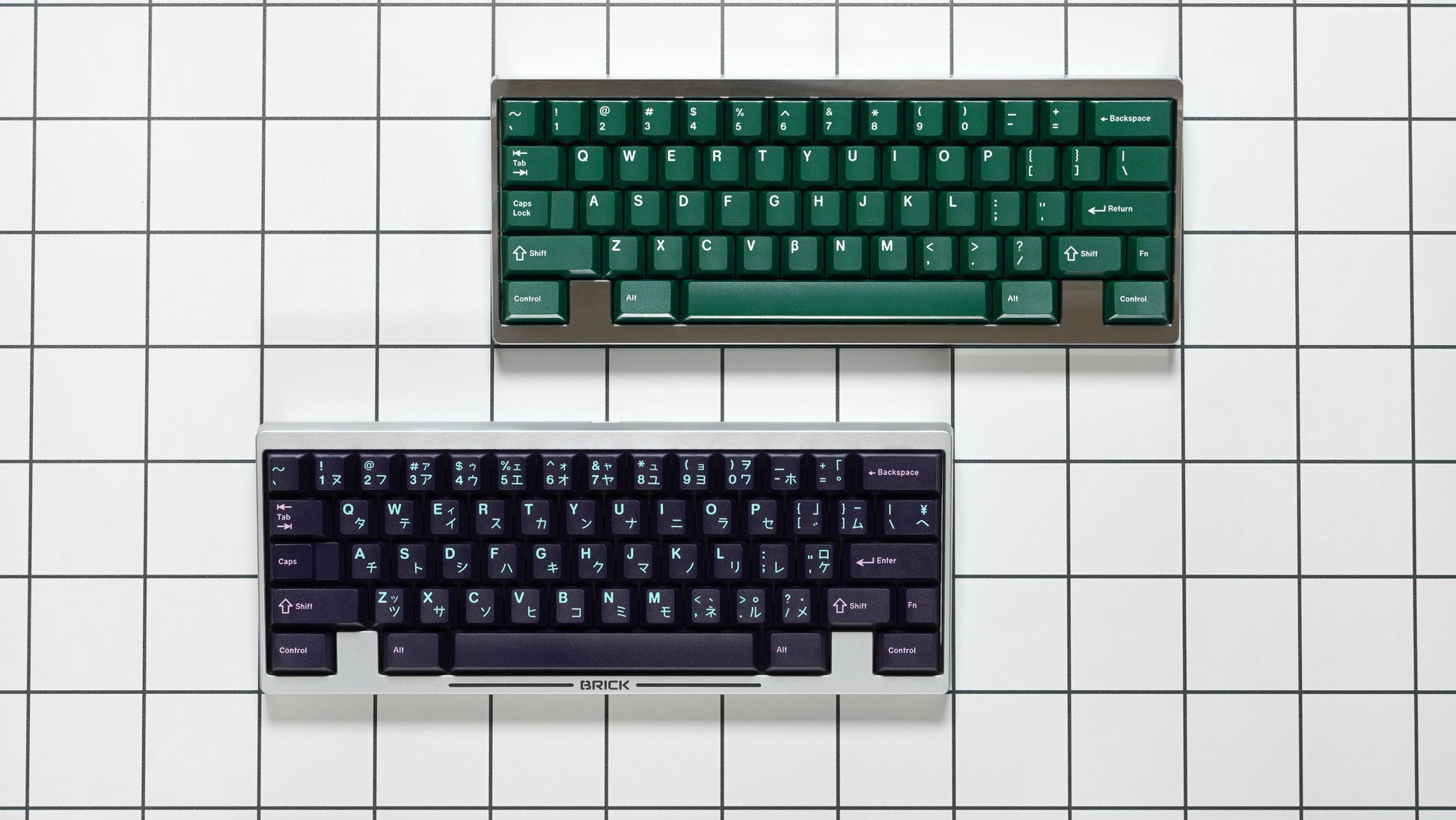

BRICK60 Kit

BRICK 60

* SPECS

- MOUNT : TOP MOUNT

- TYPING ANGLE : 9˚

* INCLUDED

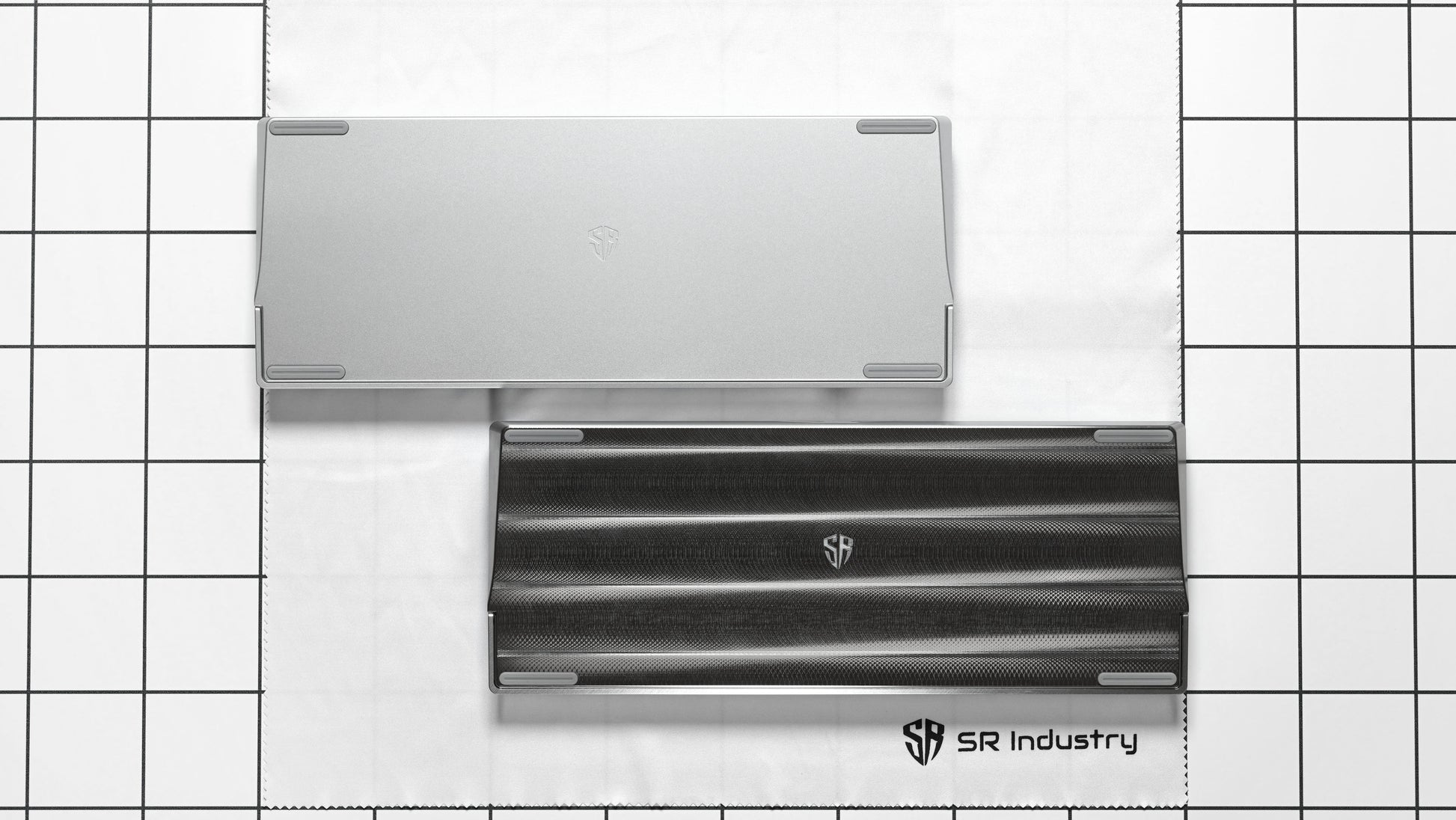

- BASE PLATE - ALUMINUM6063 or ALUMINUM 6161 / STAINLESS STEEL

; Daughter Board

  Daughter Board Cover

 JST Cable

 Bumpon

HOUSING BOLT

UPPER PLATE - ALUMINUM6063 or ALUMINUM6061

; PLATE BOLT

 BADGE

When purchased as a set, the upper and lower plates are packaged in an EVA bag.

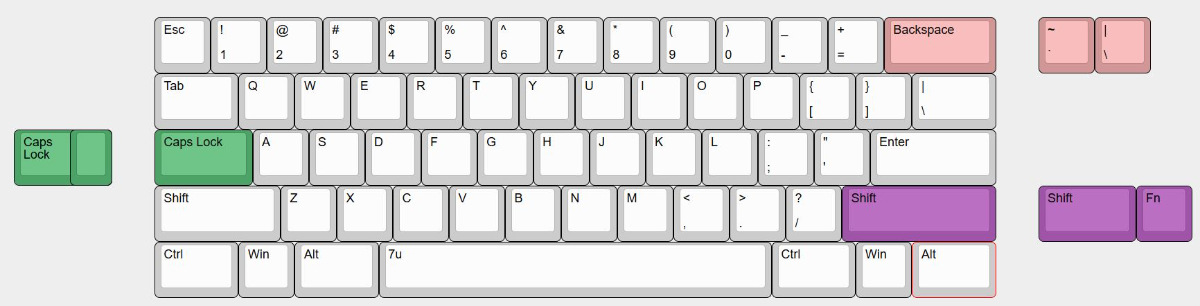

* LAYOUT

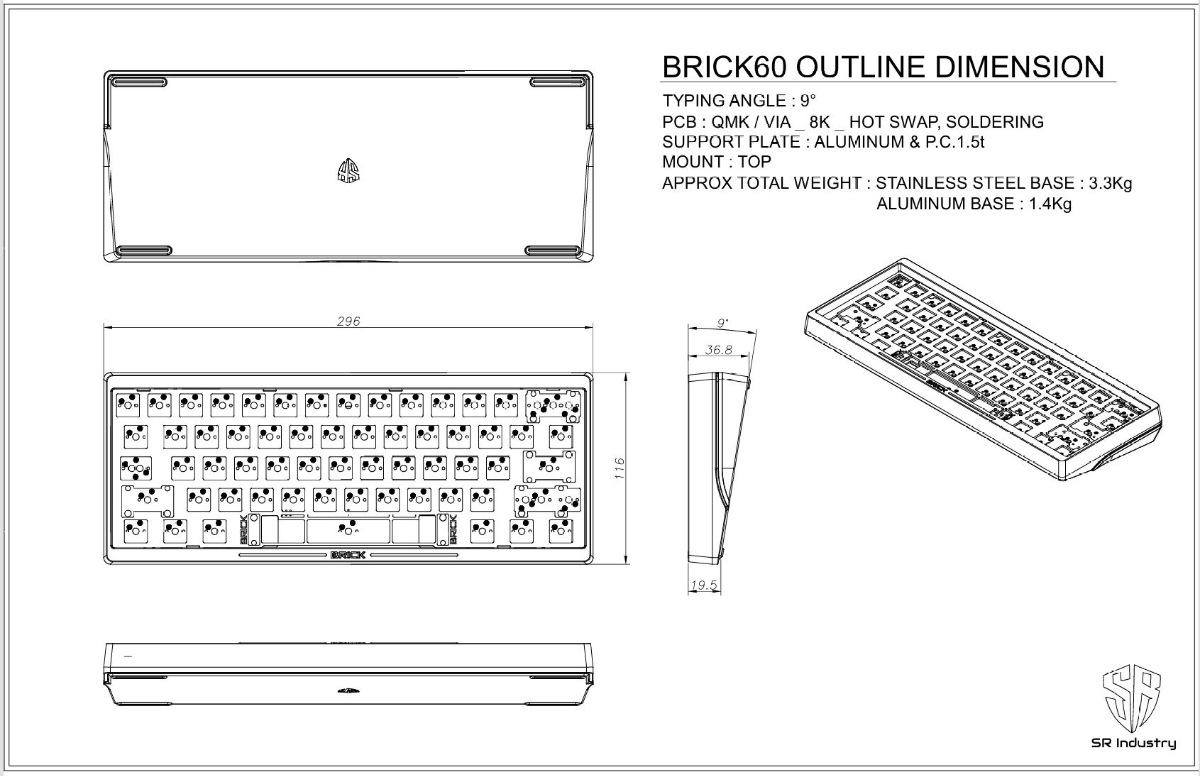

* OUTLINE DIMENSION

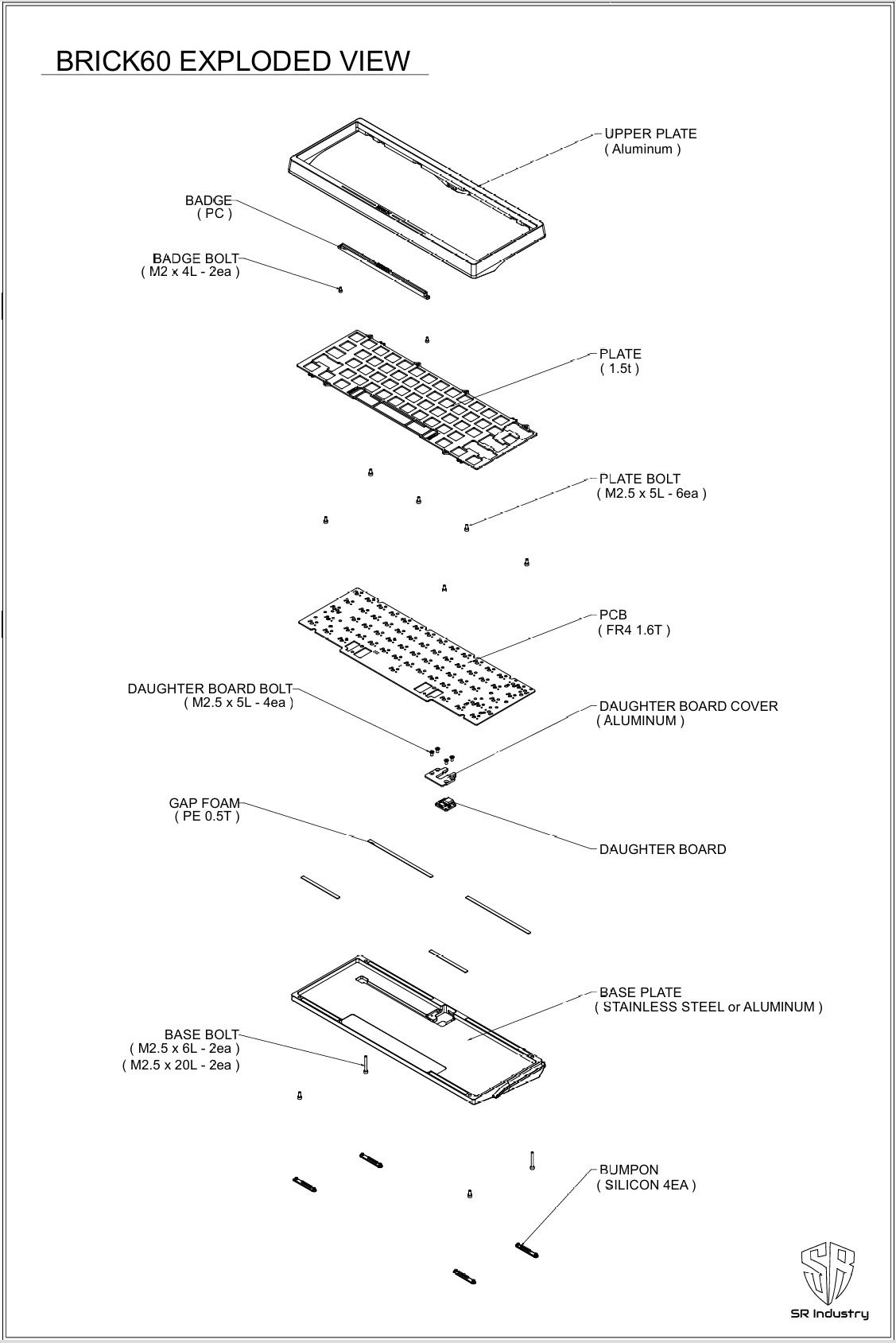

* EXPLODED VIEW

Sales Period: September 21 (Mon) – October 4 (Sun).

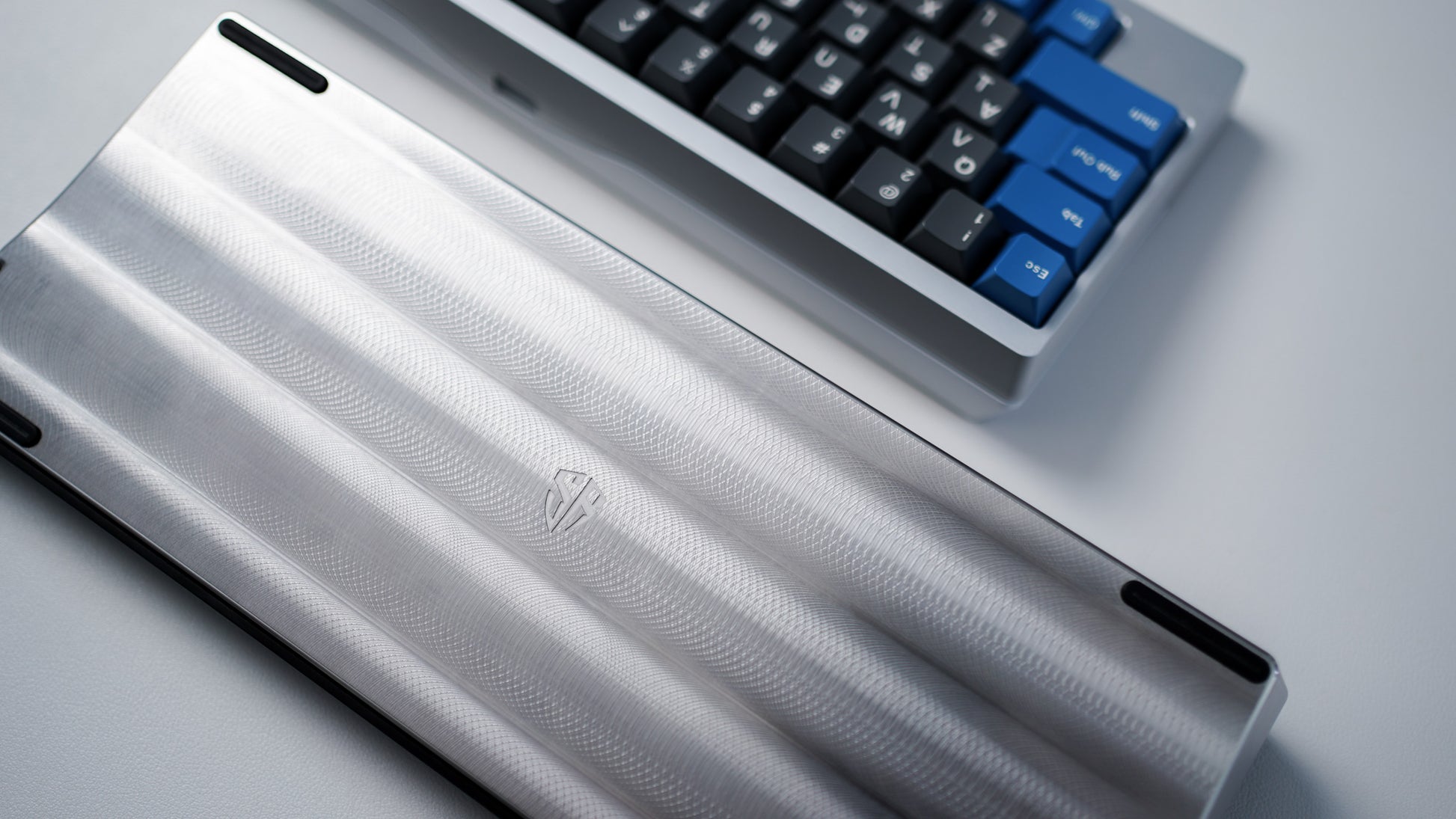

* Raw Product Information (Raw Base features machining marks on the bottom)

"Raw" products are supplied in their post-machining state, without any additional surface finishing such as anodizing or painting.

Consequently, unlike standard anodized products, they may exhibit the following characteristics:

Fine scratches, indentations, or machining marks resulting from the CNC process may be visible.
The color and surface appearance of the aluminum material itself may vary depending on the specific area.
Minor surface marks incurred during machining and handling may remain.
As there is no protective surface coating, discoloration or corrosion may occur over time due to factors such as sweat or moisture from handling.
These phenomena are inherent characteristics of Raw products; unless they impair the product's functionality or usability, they do not qualify as grounds for exchange or claims of defect.

We recommend applying a surface finish—such as anodizing—in your preferred color and style after receiving the product. Proper surface finishing is particularly recommended for long-term use.

The PCB, plate, and foam must be purchased separately.

These products are manufactured from aluminum and stainless steel; due to the nature of the materials, machining marks or slight scratches may be present.

Shipping is scheduled for the first quarter of 2027, though this schedule is subject to change.

** If the top and bottom cases are purchased together, they will be shipped in a dedicated EVA bag.

The plate, PCB, and foam must be purchased separately.
